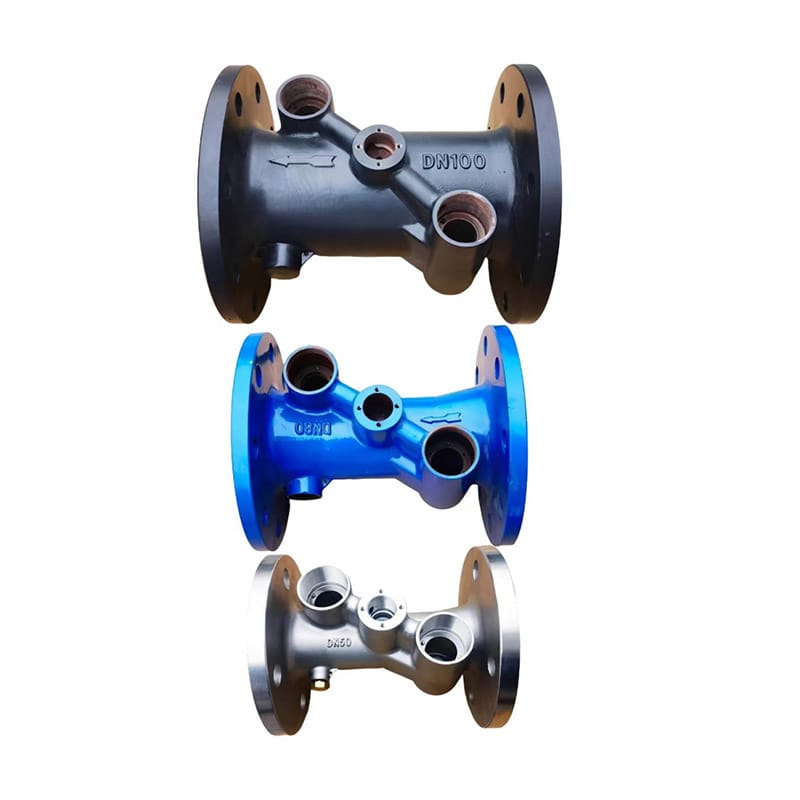

This ultrasonic heat meter pipe section covers DN50-DN300 diameters, featuring flange connections with standard bolt hole spacing to meet the pipeline integration and high-precision metering requirements of medium to large heating systems.
| Specifications | Ultrasonic heat meter pipe section parameters | ||||||||
| Nominal Diameter DN (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| Product Length L (mm) | 200 | 200 | 225 | 250 | 250 | 300 | 350 | 450 | 500 |
| Flange outer diameter | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| Bolt hole center | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
| Connecting bolts | 4-M16 | 4-M16 | 8-M16 | 8-M16 | 8-M16 | 8-M20 | 12-M20 | 12-M20 | 12-M20 |
