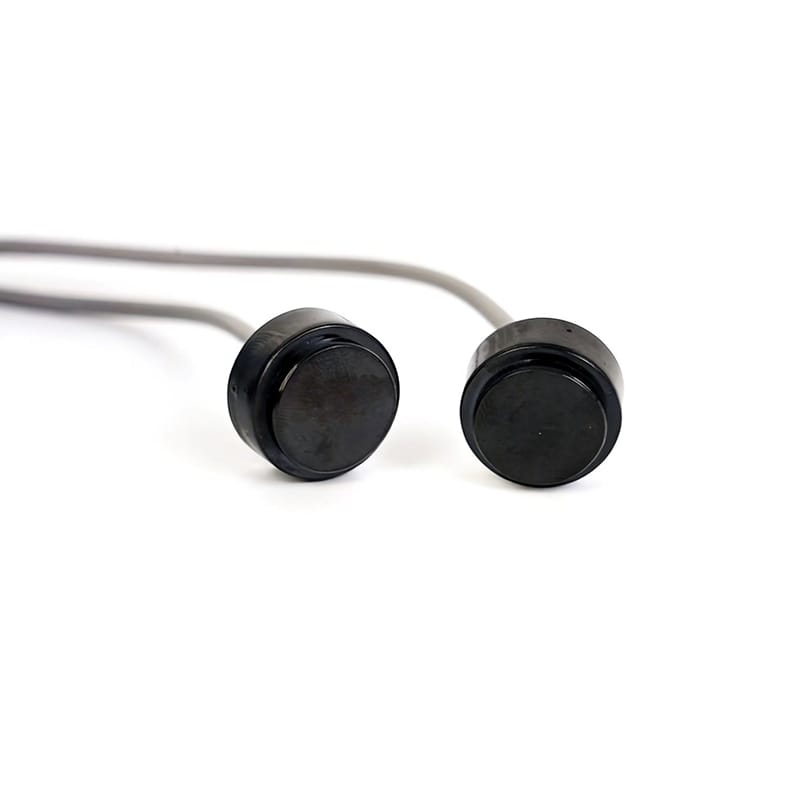

The FT-17SL meter specific transducer features a 1MHz center frequency and polymer housing, offering IP68 protection grade and ≥240mV high receiving sensitivity to deliver stable and reliable acoustic transmission for ultrasonic meters.
| Model Number | FT-17SL | Center frequency | 1Mhz±10% | Capacitor | 1000pf±20% |
| Resonant Impedance | <150Ω | Protection class | IP68 | Operating Temperature | 0.1-80℃ |
| Withstand Voltage | <2.6Mpa | Transmit beam angle | 5°-10° | Receiver Sensitivity | ≥240mV (half-wave) |

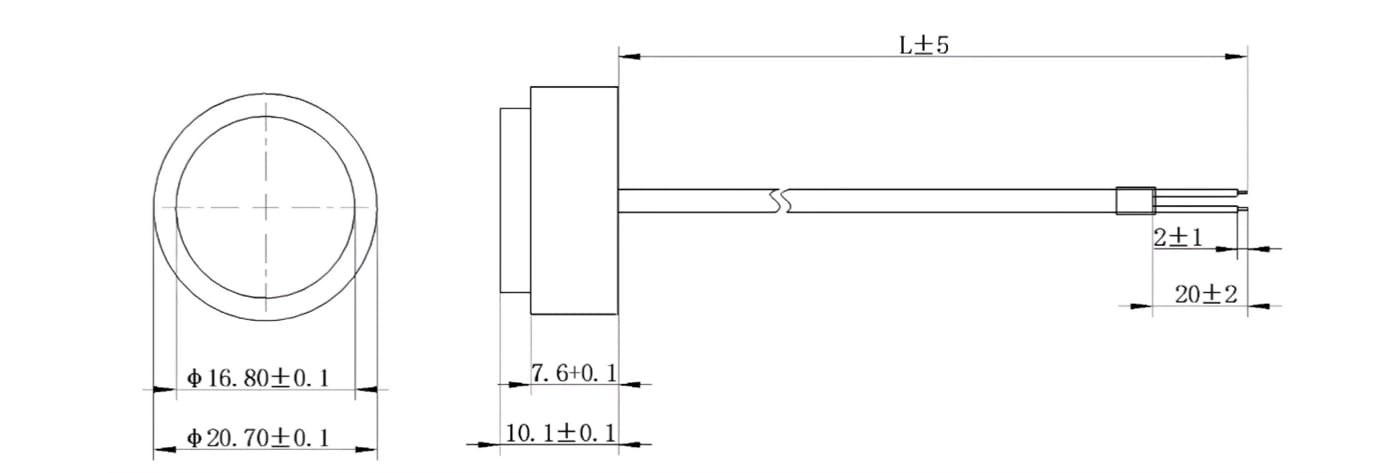

| Housing Material | Polymer materials | Transmitter surface size | φ17mm | Mounting Surface Dimensions | φ21mm |
| Sealing Method | epoxy resin potting | Leader position | Sensor Center | Linear Type | dual-core wire |
Shandong Dingjia Intelligent Technology Co., Ltd. is a professional company specializing in providing high-quality water meters and heat meters solutions to the global market.
Providing high-precision water and heat meters for new buildings, enabling smart water and heat management for comfort and energy savings.
Easily replace or upgrade metering systems in renovation projects, improving energy efficiency and management convenience.
Applied in smart communities, cities, and rural development, enabling remote monitoring, precise data collection, and efficient management.
